Integrated Campaign Registry UNICEF
Integrated Campaign Registry

ICR solution architecture

The ICR holds

  • The location registry: admin areas, facilities, catchments, settlements
  • Campaigns and rounds, targets and results
  • Shared codes, and how each tool's codes map to them

Other systems keep doing

  • Data collection in CommCare, DIGIT, ODK and DHIS2 Tracker
  • Microplanning in Crosscut
  • Routine reporting in DHIS2, the national HMIS

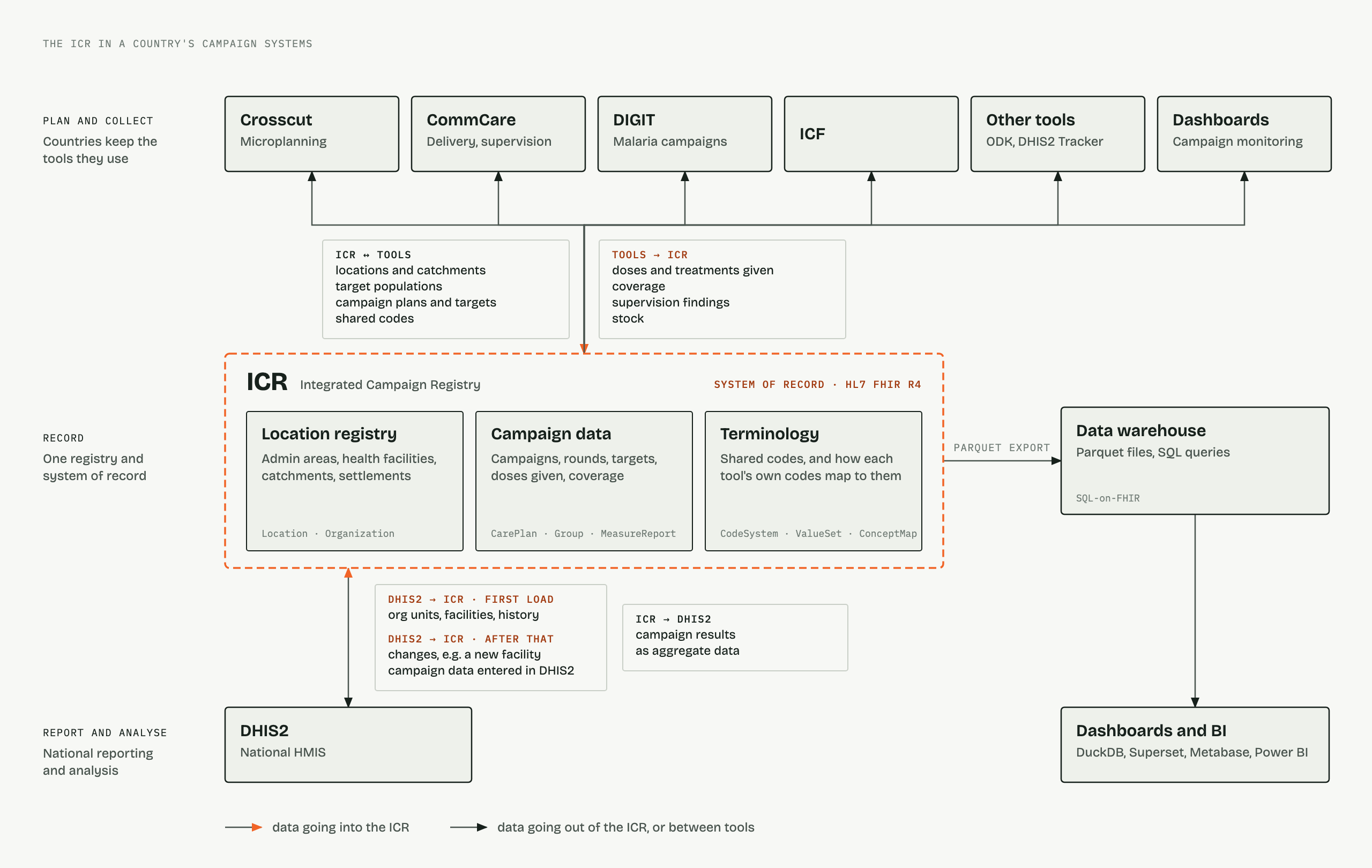

Diagram 1

Where the ICR sits between campaign tools and national reporting

The ICR in a country's campaign systems: campaign tools plan and collect, the ICR keeps the registry and the record, DHIS2 and the warehouse report. THE ICR IN A COUNTRY'S CAMPAIGN SYSTEMS PLAN AND COLLECT Countries keep the tools they use RECORD One registry and system of record REPORT AND ANALYSE National reporting and analysis data going into the ICRdata going out of the ICR, or between tools PARQUET EXPORT CrosscutMicroplanning CommCareDelivery, supervision DIGITMalaria campaigns ICF Other toolsODK, DHIS2 Tracker DashboardsCampaign monitoring ICRIntegrated Campaign RegistrySYSTEM OF RECORD · HL7 FHIR R4 Location registryAdmin areas, health facilities,catchments, settlementsLocation · Organization Campaign dataCampaigns, rounds, targets,doses given, coverageCarePlan · Group · MeasureReport TerminologyShared codes, and how eachtool's own codes map to themCodeSystem · ValueSet · ConceptMap Data warehouseParquet files, SQL queriesSQL-on-FHIR Dashboards and BIDuckDB, Superset, Metabase, Power BI DHIS2National HMIS ICR ↔ TOOLSlocations and catchmentstarget populationscampaign plans and targetsshared codes TOOLS → ICRdoses and treatments givencoveragesupervision findingsstock DHIS2 → ICR · FIRST LOADorg units, facilities, history DHIS2 → ICR · AFTER THATchanges, e.g. a new facilitycampaign data entered in DHIS2 ICR → DHIS2campaign resultsas aggregate data 1 LOAD1 LOAD DHIS2 org units and historical campaign data load the ICR's location registry and campaign data. 2 PLAN2 PLAN Crosscut reads locations and target populations from the ICR to make microplans,and sends catchment areas back to the location registry. 3 DELIVER3 DELIVER Collection tools get the campaign plan, targets and shared codes from the ICR,run the campaign with their own forms, and send results back. DHIS2 sends its campaign data and any changes, such as a new facility. 4 REPORT4 REPORT The ICR sends aggregate results to DHIS2 and exports Parquet files to the warehouse,which dashboards and BI tools read. 5 NEXT ROUND5 NEXT ROUND The next round starts from the registry: locations, populations and past resultsdon't have to be collected again.
Click a step to play it, or Play to run through them all. Orange arrowheads mark data going into the ICR.

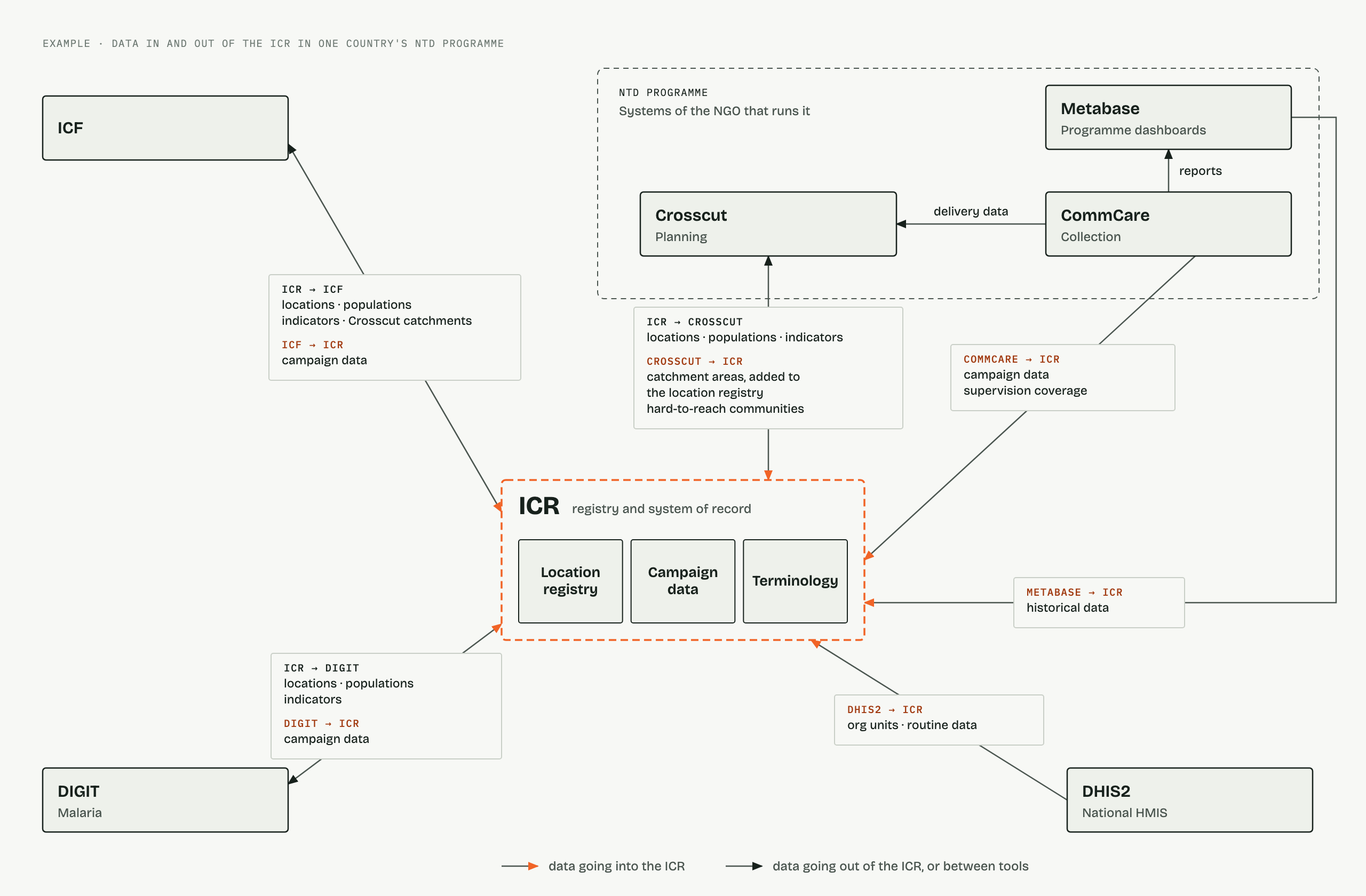

Diagram 2

Example: what goes in and out of the ICR in one country's NTD programme

The NGO running the NTD programme uses Crosscut for planning, CommCare for collection and Metabase for its dashboards. Other programmes in the same country use ICF and DIGIT. The ICR gives all of them the same locations and populations, and collects their results in one place.

Example of one country's NTD programme: what each system sends to the ICR and what it gets back. EXAMPLE · DATA IN AND OUT OF THE ICR IN ONE COUNTRY'S NTD PROGRAMME NTD PROGRAMME Systems of the NGO that runs it data going into the ICRdata going out of the ICR, or between tools delivery data reports MetabaseProgramme dashboards CrosscutPlanning CommCareCollection ICF DIGITMalaria DHIS2National HMIS ICRregistry and system of record Locationregistry Campaigndata Terminology ICR → ICFlocations · populationsindicators · Crosscut catchments ICF → ICRcampaign data ICR → DIGITlocations · populationsindicators DIGIT → ICRcampaign data ICR → CROSSCUTlocations · populations · indicators CROSSCUT → ICRcatchment areas, added tothe location registryhard-to-reach communities COMMCARE → ICRcampaign datasupervision coverage METABASE → ICRhistorical data DHIS2 → ICRorg units · routine data 1 EXISTING DATA1 EXISTING DATA DHIS2 sends org units and routine data. The NTD programme's Metabase sendsdata from past campaigns. 2 PLAN2 PLAN Crosscut takes locations, populations and indicators from the ICR. Its catchment areasand hard-to-reach communities go back into the location registry. 3 SHARE3 SHARE Other programmes' tools, ICF and DIGIT for malaria, get the same locations, populationsand indicators. ICF also gets Crosscut's catchments. 4 RUN CAMPAIGNS4 RUN CAMPAIGNS CommCare sends delivery data to Crosscut and Metabase, and campaign data andsupervision coverage to the ICR. ICF and DIGIT send their campaign data too. 5 NEXT ROUND5 NEXT ROUND The next round starts from what the ICR holds: locations, catchments, populationsand past results are already there.

For slides: diagram 1 as PNG or SVG, diagram 2 as PNG or SVG. Animated SVGs: diagram 1, diagram 2.
